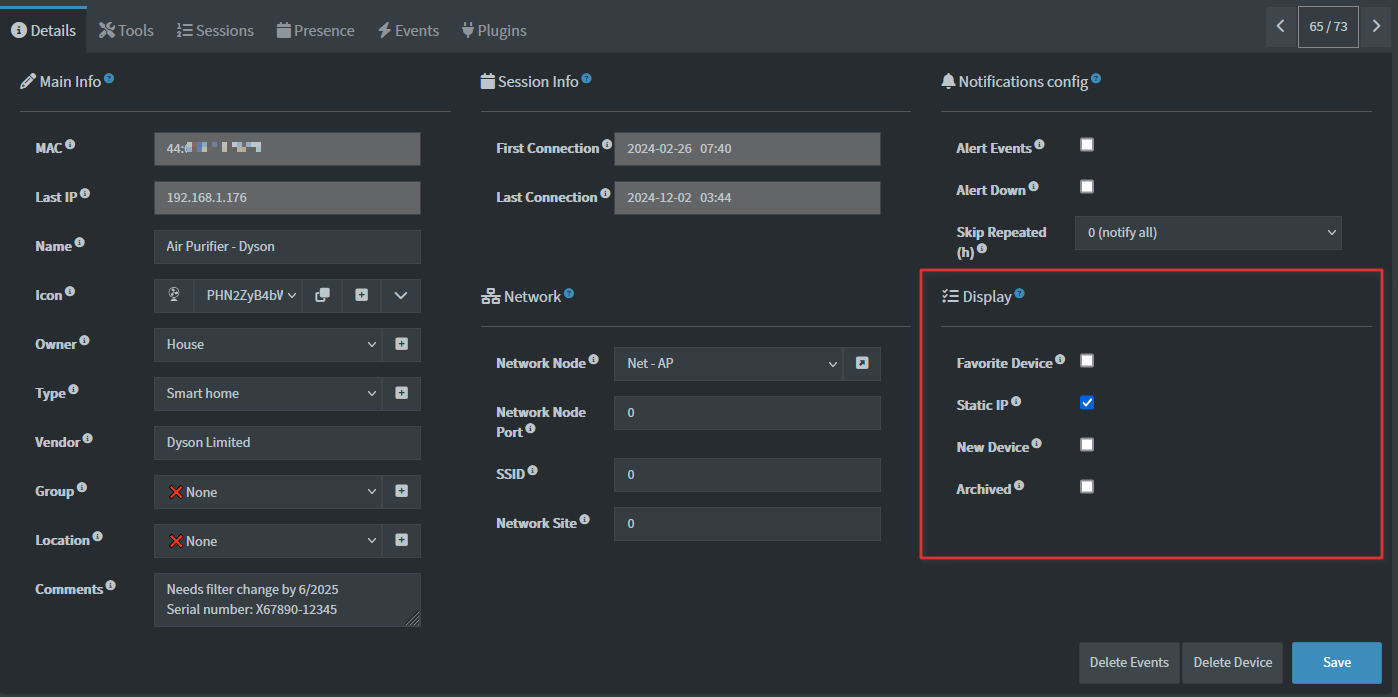

Device Display Settings
This set of settings allows you to group Devices under different views. The Archived toggle allows you to exclude a Device from most listings and notifications.

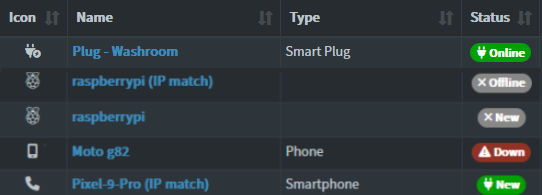

Status Colors
| Icon | Status | Image | Description |
|---|---|---|---|
| Online (Green) | A device that is no longer marked as a "New Device". | ||
| New (Green) | A newly discovered device that is online and is still marked as a "New Device". | ||
| Online (Orange) | The device is online, but unstable and flapping (3 status changes in the last hour). | ||
| New (Grey) | Same as "New (Green)" but the device is now offline. | ||
| New (Grey) | Same as "New (Green)" but the device is now offline and archived. | ||
| Offline (Grey) | A device that was not detected online in the last scan. | ||
| Archived (Grey) | A device that was not detected online in the last scan. | ||
| Sleeping (Aqua) | A device with Can Sleep enabled that has gone offline within the NTFPRCS_sleep_time window. No down alert is fired while the device is in this state. See Notifications. |
||
| Down (Red) | A device marked as "Alert Down" and offline for the duration set in NTFPRCS_alert_down_time. |
See also Notification guide.
